Isimet
Utility Safety Controls Since 2000

ISIMET LP1 Laboratory Utility Safety Package

UL LISTED SYSTEM IS CODE COMPLIANT. MEETS OR EXCEEDS: NFPA45, NFPA54, NFPA101, IFGC409

SAFETY - IT’S IN YOUR CONTROL

  • Allows the instructor to control gas, electricity, water and fan; key-activated to protect against unauthorized use, accidents and vandalism
  • Programmable timer automatically turns off utilities
  • Panic button deactivates utilities and turns exhaust fan on; fire alarm turns fan off
  • Gas sensor detects and shuts off gas
  • Monitoring beacon visually indicates location of emergency
  • Emergency shower monitor notifies if water is flowing
  • Helps keep students, teachers and facilities safe

ISIMET® LP1 Laboratory Utility Safety Package

3 Utilities (Gas, Water and Electricity + Fan)

LP1 Package Includes:
  • (1) Utility Controller:
  • 120 VAC Input w/ 24 VAC Output
  • Flush Mount
  • 4 Switch Front
  • Gray Powder Coated Box
  • White Powder Coated Door
  • (1) S Series Enclosure:
  • (1) 24 VAC Gas Solenoid (3/4”)
  • (2) 24 VAC Water Solenoids (1”)
  • Unions and Y strainer
  • (1) Box and door
  • - Flush Mount
  • - Gray Powder Coated Metal Box
  • - White Powder Coated Metal Door
  • (1) E Series Enclosure:
  • Surface Mount
  • Gray Powder Coated Box
  • Gray Powder Coated Door
  • Screw Cover Panel
  • (1) Remote Panic Button
  • (1) Emergency Shower Monitor
  • (1) Monitoring Beacon
  • (1) Fuel Gas Sensor
  • Options:
  • Gas Pressure Transmitter
  • LA Series

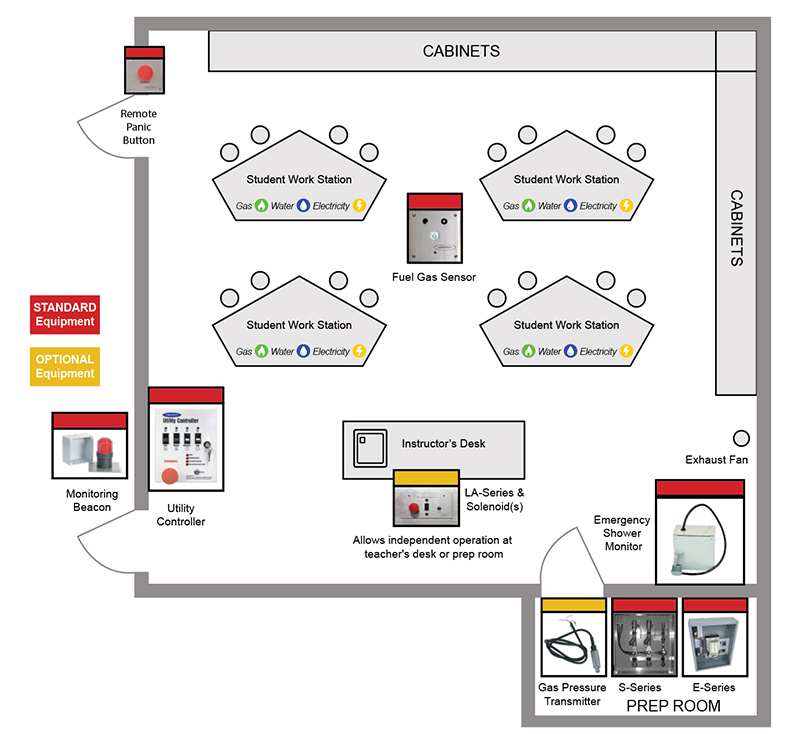

Typical Classroom Layout: typical classroom layout
