Rooftop Pedestals

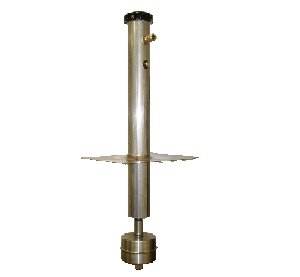

The MPH-24FP:24/9

meets ASSE 1057 Sanitary Yard Hydrant Standard. The hydrant utilizes a 1" bronze valve within a fully insulated stainless steel shroud. The "drain down design" of the MPH-24FP:24/9 hydrant operates on the venturi principle. When the hydrant is OFF, the stopper seals against the nozzle and stops flow. The water remaining in the riser drains back into the reservoir tank below the roofline. When the hydrant is ON, the flow through the nozzle creates a vacuum in the reservoir evacuating the water out through the hydrant.

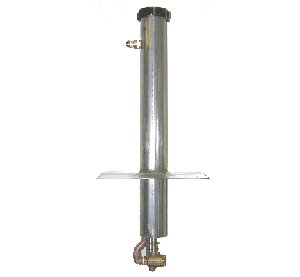

The MPH-24D:24/9

Utilizes a 1" bronze valve within a fully insulated stainless steel shroud. This Auto-Drain assembly utilizes a full port ball valve with an auto-drain port that is located below freeze line at the base of the Hydrant. The "drain down design" of the MPH-24D:24/9 hydrant allows the water remaining in the stand pipe to discharge through the field provided drain down piping to an open site drain located below the roofline. An auto-drain type hose vacuum breaker is permanently attached to the discharge outlet located near the top of the pedestal. Supply connection is made at the 3/4" fitting located at the base of the hydrant.

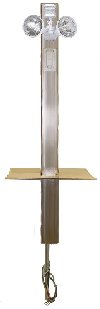

MPX-20(X):36/12 Utility Pedestal

The standard Stainless Steel Shroud extends above the roof line thirty-six inches with an additional twelve inches beneath roofline so as to permit the unit to be securely fastened to the roof structural members by securing the under-deck mounting flange to a welded deck flange. The roof flange is provided with fastening hardware to enable the intaller to secure the flange first against the shroud and then onto a deck flange. Pedestals are furnished completely assembled.

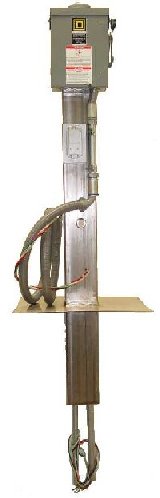

Pedestal Disconnect: MPD-(X):36/12

The MAPA Products Fusible Rainproof Pedestal Mounted Safety Switch provides local disconnect of the electrical service at roof mounted equipment. Disconnects are available in General Duty or Heavy Duty Series. The stainless Shroud with integrally welded deck flange enables a positive weather-tight flash of the unit to the roof membrane without the need for additional flashing or pitch-pan. The need to interrupt electrical service remotely in the case of equipment change-out can be avoided since service disconnect is mounted adjacent to rather than onto the equipment.
The standard Stainless Steel Shroud extends above the roof line thirty-six inches with an additional twelve inches beneath roofline so as to permit the unit to be securely fastened to the roof structural members by securing the under-deck mounting flange to a welded deck flange. The roof flange is provided with fastening hardware to enable the intaller to secure the flange first against the shroud and then onto a deck flange.

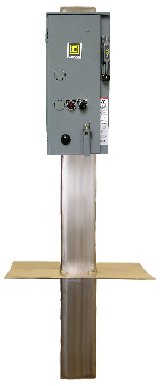

Pedestal Starter Disconnect

MPSD-(XX)-R / Starter Disconnect
MPSD-(XX)R-S / Starter Disconnect w/ Panel Switches
MPSD2-(XX)-R-S / Two Speed Starter Disconnect

The MAPA Products Fusible Rainproof Pedestal Mounted Safety Switch provides local starter disconnect of the electrical service at roof mounted equipment. The stainless Shroud with integrally welded deck flange enables a positive weather-tight flash of the unit to the roof membrane without the need for additional flashing or pitch-pan. The need to interrupt electrical service remotely in the case of equipment change-out can be avoided since service disconnect is mounted adjacent to rather than onto the equipment.
