Mapa Support Solutions

MT2RF4 Roller Supports/Trade Series MT2RF4

Base Assembly Nylon 6/6
Roller Assembly 5/16" - Vertical SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height Fixed 4"
Base Dimension 5" X 8"
Foot Print 40
Weight Limit 110 lbs.
Max Pipe Size Single 2" or Smaller Schedule 40 Natural Gas

MT2RF4 Roller Supports/Trade Series MT2RF4

Base Assembly Nylon 6/6
Roller Assembly 5/16" - Vertical SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height Fixed 4"
Base Dimension 5" X 8"
Foot Print 40
Weight Limit 110 lbs.
Max Pipe Size Single 2" or Smaller Schedule 40 Natural Gas

Optional Accessories available for this product:

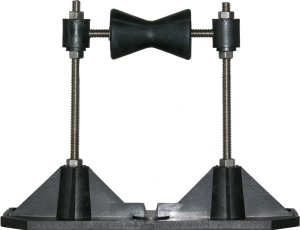

Roller Support MS-2.5RA7

Base Assembly: Nylon 6/6
Roller Assembly: 5/16" - Vertical SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height: 3" to 7"
Base Dimension: 5" X 10"
Foot Print: 50
Weight Limit 110 lbs.
Max Pipe Size Single 3" or Smaller Schedule 40 Natural Gas

Roller Support MS-3RA12

Base Assembly Nylon 6/6
Roller Assembly 3/8" - Vertical SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 12"
Base Dimension 5" X 10"
Foot Print 50
Weight Limit 140 lbs.
Max Pipe Size Single 3" or Smaller Schedule 40 Natural Gas

Roller Support MS-4RF3

Base Assembly Nylon 6/6
Roller Assembly 5/16" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height Fixed Height 3"
Base Dimension 5" X 10"
Foot Print 50
Weight Limit 140 lbs.
Max Pipe Size Single 4" or Smaller Schedule 40 Natural Gas

Roller Support MS-4RA7

Base Assembly Nylon 6/6
Roller Assembly 3/8" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 7"
Base Dimension 5" X 10"
Foot Print 50
Weight Limit 140 lbs.
Max Pipe Size Single 4" or Smaller Schedule 40 Natural Gas

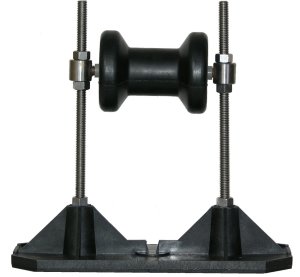

Roller Support MS-4RA10

Base Assembly Nylon 6/6
Roller Assembly 3/8" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 10"
Foot Print 50
Base Dimension 5" X 10"
Weight Limit 140 lbs.
Max Pipe Size Single 4" or Smaller Schedule 40 Natural Gas

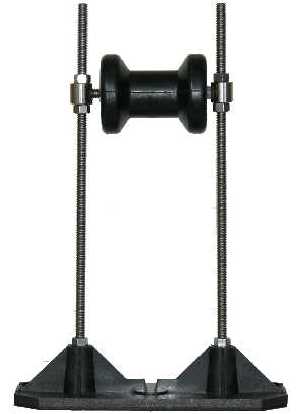

Roller Support MS-4RA14

Base Assembly Nylon 6/6
Roller Assembly 3/8" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 14"
Foot Print 50
Base Dimension 5" X 10"
Weight Limit 140 lbs.
Max Pipe Size Single 4" or Smaller Schedule 40 Natural Gas

Roller Support MS-5RF3

Base Assembly Nylon 6/6
Roller Assembly 3/8" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height Fixed Height 3"
Base Dimension 6" X 12"
Foot Print 72
Weight Limit 165 lbs.
Max Pipe Size Single 5" or Smaller Schedule 40 Natural Gas

Roller Support MS-5RA7

Base Assembly Nylon 6/6
Roller Assembly 1/2" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 7"
Base Dimension 6" X 12"
Foot Print 72
Weight Limit 165 lbs.
Max Pipe Size Single 5" or Smaller Schedule 40 Natural Gas

Roller Support MS-5RA10

Base Assembly Nylon 6/6
Roller Assembly 1/2" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 10"
Base Dimension 6" X 12"
Foot Print 72
Weight Limit 165 lbs.
Max Pipe Size Single 5" or Smaller Schedule 40 Natural Gas

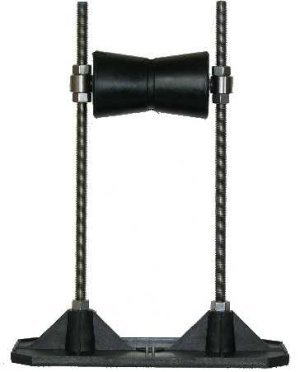

Roller Support MS-5RA14

Base Assembly Nylon 6/6
Roller Assembly 1/2" - SS ATR W/SS Shaft Hard Cast Rubber Roller
Adjustment Height 3" to 14"
Base Dimension 6" X 12"
Foot Print 72
Weight Limit 140 lbs.
Max Pipe Size Single 5" or Smaller Schedule 40 Natural Gas

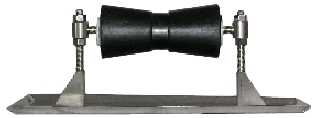

Roller Support MX-8RA6

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" or 5/8" Grade 304 SS ATR
Roller Assembly 1/2" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 6"
Base Dimension 8" X 18"
Footprint 144 sq. in.
Max Weight 250 lbs.
Max Pipe Size Single 8" or Smaller

Roller Support MX-8RA18

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" or 5/8" Grade 304 SS ATR
Roller Assembly 1/2" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 18"
Base Dimension 8" X 18"
Footprint 144 sq. in.
Max Weight 250 lbs.
Max Pipe Size Single 8" or Smaller

Roller Support MX-10RA6

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" or 5/8" Grade 304 SS ATR
Roller Assembly 1/2" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 6"
Base Dimension 8" X 20"
Footprint 160 sq. in.
Max Weight 280 lbs.
Max Pipe Size Single 10" or Smaller

Roller Support MX-10RA18

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" or 5/8" Grade 304 SS ATR
Roller Assembly 1/2" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 18"
Base Dimension 8" X 20"
Footprint 160 sq. in.
Max Weight 280 lbs.
Max Pipe Size Single 10" or Smaller

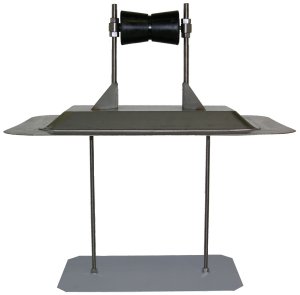

Roller Support MX-5RA9-SA

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" Grade 304 SS ATR
Roller Assembly 3/8" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 9"
Base Dimension 14" X 6" X Optional 1 1/2" or 3"
Attachment Hardware 14" X3/8" ATR, 14 Gauge primed steel plate
Max Weight 250 lbs.
Max Pipe Size Single 5" or Smaller

Roller Support MX-8RA9-SA

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" Grade 304 SS ATR
Roller Assembly 3/8" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 9"
Base Dimension 14" X 6" X Optional 1 1/2" or 3"
Attachment Hardware 14" X3/8" ATR, 14 Gauge primed steel plate
Max Weight 250 lbs.
Max Pipe Size Single 8" or Smaller

Roller Support MX-10RA9-SA

Base Assembly 18 gauge, grade 304 SS
Rod Assembly 1/2" Grade 304 SS ATR
Roller Assembly 3/8" - SS ATR Shaft, Hard Cast Rubber Roller W/ Nylon Bushing
Adjustment Height 3" to 9"
Base Dimension 14" X 6" X Optional 1 1/2" or 3"
Attachment Hardware 14" X3/8" ATR, 14 Gauge primed steel plate
Max Weight 250 lbs.
Max Pipe Size Single 10" or Smaller
