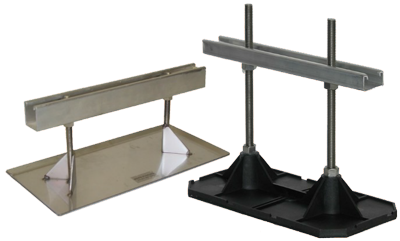

Strut Supports for Conduits, Pipes and Supply Lines
Typically used as a free standing/non-penetrating pipe support stand for conduit, refrigeration and natural gas piping, applications installed on single ply or built-up roofs. Utilized within the recommended load limits strut supports are recommended for securing single or multiple line sets when thermal expansion is not a concern. The adjustable rod assembly permits piping to be installed level on tapered roofs.
Features
- All Stainless-Steel Hardware.
- Free Standing or Structurally Attached.
- Available with integrated 1/8” isolation pad or ½” HD Walk Pad.
- UV Protected Nylon or Stainless-Steel Base.
- 1-5/8” Square or Shallow Aluminum Strut depending upon series.
- Vertically Adjustable ranges from 4”-18”; Fixed height models available.
- Designed and manufactured in compliance with the International Fuel Gas Code, MSS SP-58-2002, MSS SP-69-2002 and MSS SP-127-2001 where applicable for structural support systems.
Structural
Example: MX-14SA9-SA
Structurally Attached Strut Support
The Structurally Attached Support Series provides a manufactured support designed to secure piping systems on single ply or built-up roofs in areas where seismic or high wind zones are of concern and where structural design allows for system loads at attachment points.
- Available with 14” or 18” by 1-5/8 Square Strut.
- Provides a secure weatherproof penetration of the roof deck, while minimizing the overall flashed area of the installation.
- Where project design allows, free standing supports may be used in conjunction with structurally attached supports.
- For increased loading under deck structural support or reinforcement of roof insulation should be considered.
(Where structural blocking is utilized; load is transferred directly to the structure; thereby increasing the allowable load, as approved by the structural engineer, any increased loading should not exceed 500 lbs.)
Related Accessories

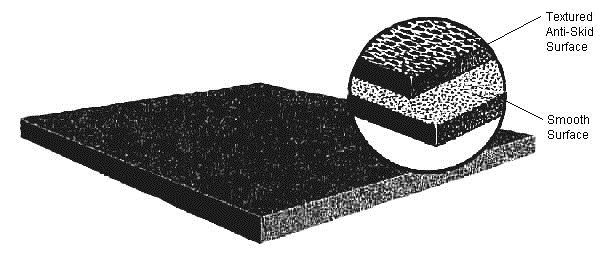

- Material: 100% Recycled Black Rubber Surface: Flat smooth
- Back Side: Wire mesh texture, anti-skid sur- face.
- Weight 3 lbs. square foot. Sizes: Varies by support.
Walk Pads
- Snap-N-Strut Clamps and Strut Nuts are produced from high-performance UV stabilized 6/6 nylon resins.
- Hinged, Snap-On lock arm adjusts for pipe O.D. variations, affording the ability to accommodate several different pipe sizes.
- Non-metallic design… Eliminates the concern for galvanic corrosion.
- The nylon material utilized, combined with the uniquely engineered design, absorbs vibration and acts as a cushion between the piping and its supporting structure.
- When the pipe is inserted into the clamp, it can no longer turn. Thus, the need for a lock nut is eliminated.
Snap-N-Strut Clamps

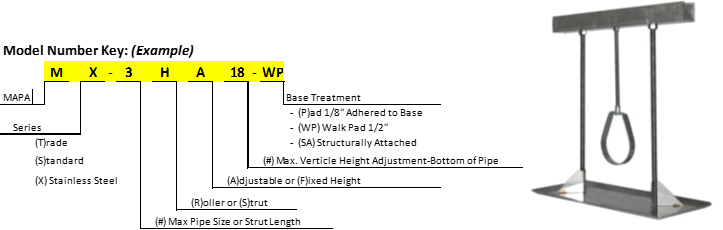

Model Numbers
| MAPA Strut Supports | ||||||||||||||
| (FH) Fixed Height Models | Strut | Max | Accessory | |||||||||||
| Length | Load | Maximum Height or Vertical Adjustability | ATR | Base | Footprint | 1/2" | ||||||||
| In. | LB.S | Size | Dimension | in2 | (WP) Walkpad | |||||||||
| MT-8 | 8 | 110 | 4" Fixed Height | NA | 5” x 8” | 40 | MWP812 | |||||||
| MS-10 | 10 | 140 | 4" or 6" Fixed Height | NA | 5” x 10” | 50 | MWP914 | |||||||
| MS-12 | 12 | 165 | 4" Fixed Height | NA | 6” x 12” | 72 | MWP1016 | |||||||
| (SA) Adjustable Height Models | Strut | Max | Maximum Height or Vertical Adjustability | |||||||||||
| Length | Load | ATR | Base | Footprint | 1/2" | |||||||||
| IPS | LB.S | 6" | 7" | 10" | 12" | 14" | 18" | Size | Dimension | in2 | (WP) Walkpad | |||
| MT-8 | 2 | 110 | ü | 5/16 | 5” x 8” | 40 | MWP812 | |||||||
| MS-10 | 2.5 | 140 | ü | ü | ü | 3/8 | 5” x 10” | 50 | MWP914 | |||||
| MS-12 | 3 | 140 | ü | ü | ü | 1/2 | 6” x 12” | 72 | MWP1016 | |||||
| Strut with Hanger | ||||||||||||||
| MS-2HA12 | 2 | 119 | 3"-13" | 3/8 | 5” x 10” | 50 | MWP914 | |||||||
| MS-3HA16 | 3 | 140 | 3"-13" | 1/2 | 6” x 12” | 72 | MWP1016 | |||||||
| (X): Stainless Steel Adjustable Height | Strut | Max | Maximum Height or Vertical Adjustability | |||||||||||
| Length | Load | ATR | Base | Footprint | 1/2" | |||||||||
| IPS | LB.S | 6" | 7" | 10" | 12" | 14" | 18" | Size | Dimension | in2 | (WP) Walkpad | |||
| MX-12 | 5 | 195 | ü | ü | 1/2 | 6” x 12” | 72 | MWP1016 | ||||||
| MX-18 | 6 | 195 | ü | ü | 1/2 | 8” x 18” | 84 | MWP1222 | ||||||
| MX-20 | 8 | 250 | ü | ü | 1/2 | 8” x 18” | 144 | MWP1222 | ||||||
| Strut with Hanger | ||||||||||||||
| MX-2HA18 | 2 | 210 | 3"-13" | 1/2 | 8” x 18” | 84 | MWP1222 | |||||||
| MX-3HA18 | 3 | 210 | 3"-13" | 1/2 | 8” x 18” | 84 | MWP1222 | |||||||
| MX-4HA18 | 4 | 210 | 3"-11" | 1/2 | 8” x 18” | 84 | MWP1222 | |||||||
| (SA) Structurally Attached Roller Supports | ||||||||||||||
| MX-14SA9-SA | 14 | 250 | 9" Adjustable Height | 1/2 | 1-1/2"x6"x14" | NA | NA | |||||||
| MX-18SA9-SA | 18 | 250 | 1/2 | 1-1/2"x6"x14" | NA | NA | ||||||||
| Note: Max loading for all models based on compression strengths associated with typical polyiso insulation products commonly available in the range of 1625 psi. | ||||||||||||||
- Additional Notes:
- Maximum pipe size based upon load and spacing calculations for usual and customary pipe sizes.
- Weight limits are established by the contact area of the support to roof surface with a maximum load per square inch of 5 lbs.
- SA (Structurally Attached Supports) where structural blocking is utilized; load is transferred directly to the structure; thereby increasing the allowable load, as approved by the structural engineer. Any increased loading should not exceed 500 lbs.
- Where installation height exceeds 12” refer to MAPA Products “Recommended Installation Guidelines”
